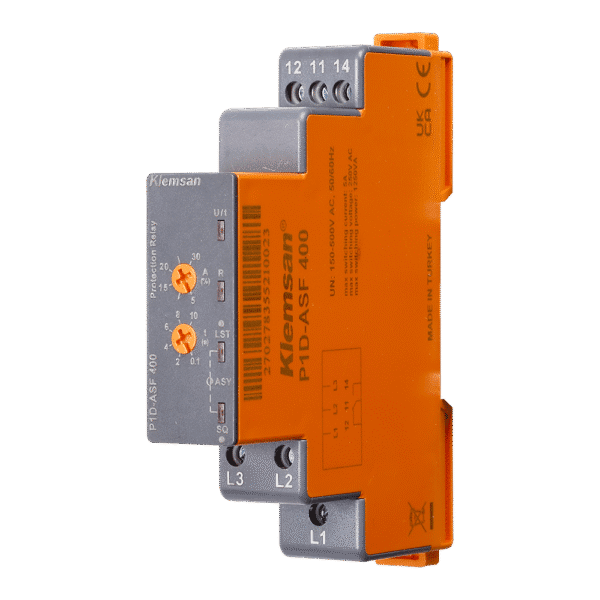

ב. ח. פאזה כיול א-סימטריה ללא N

דגם: P1D-ASF 400

מק"ט: 2.70278 קטגוריות: בקרים, ציוד ללוחות, ציוד מיתוג ללוח, תזמון ובקרה לפס דין/פנל

בקר סדר / חוסר פאזה ללא שימוש או ניטור אפס (N) המתריע על אובדן אחת הפאזות או יותר ושינוי בסדר הפאזות מחברת החשמל. בנוסף ניתן לכייל את גבולות הא-סימטריה (5-30%) בין כל אחת מהפאזות לאחרות וכיול זמן ההשהייה לכניסה לפעולה מרגע זיהוי התקלה וזאת לשם הגנה על מנועים חשמליים הרגישים לאחת התופעות המצויינות לעיל.

כמו כן דגם זה כולל מאפייני בטיחות להתרעה על חריגה בעליה וירידה של המתח הכללי לפי סף מתח קבוע מראש המהווה גבול עליון ותחתון.

יישומים

להתקנה על פס דין
נועד לבקרת איכות הספקת מתח הרשת ושמירה על צרכנים סופיים
ייחודי לבחינת סימטריה בין הפאזות (ללא אפס) כיול 5-30%
חיווי נוריות לד למצב תקלה / תקינות ואופי התקלה

הוסף לסל

מפרט טכני

כללי

מתח עבודה (Un)	145-520V LL ±20% AC
אופי רשת חשמל	3 פאזות ללא אפס
ממסר מיתוג	1C/O (מגע מחליף)
מיתוג מקסימלי	10A
זרם ממסר AC (עבור מגע פתוח)	10A/250V; 1250VA
זרם ממסר DC (עבור מגע פתוח)	5A/30VDC; 150W
צריכה עצמית AC	<3VA
תדר	50-60Hz
חיזוק ברגים (Nm)	0.5
כניסות מוליכי הזנה (ממ"ר)	2.5
חתך חישוף הזנה (מ"מ)	8-9
דרגת אטימות	IP20
לחות סביבתית	95%
טמפ עבודה (ºC)	60+ – 20-
אורך חיים מכאני (מחזורים)	≥ 10⁷
כמות במארז	1 יח'

תכונות בקרה

חוסר פאזה (השהייה מובנית)	500 מילי שניות >
סדר פאזה (השהייה מובנית)	500 מילי שניות >
זמן תגובה בזיהוי תקלה	250 מילי שניות >
תכונות א-סימטריה
גבולות א-סימטריה בין פאזות (ניתן לכיול)	(5%-30%)±
היסטרזה (חשל)	3%x Un
השהייה (ניתן לכיול)	0.1-10שניות

מידות (מ"מ)

משקל

80 גר'

תקנים

הורדות

מק"ט: 2.70278 קטגוריות: בקרים, ציוד ללוחות, ציוד מיתוג ללוח, תזמון ובקרה לפס דין/פנל
