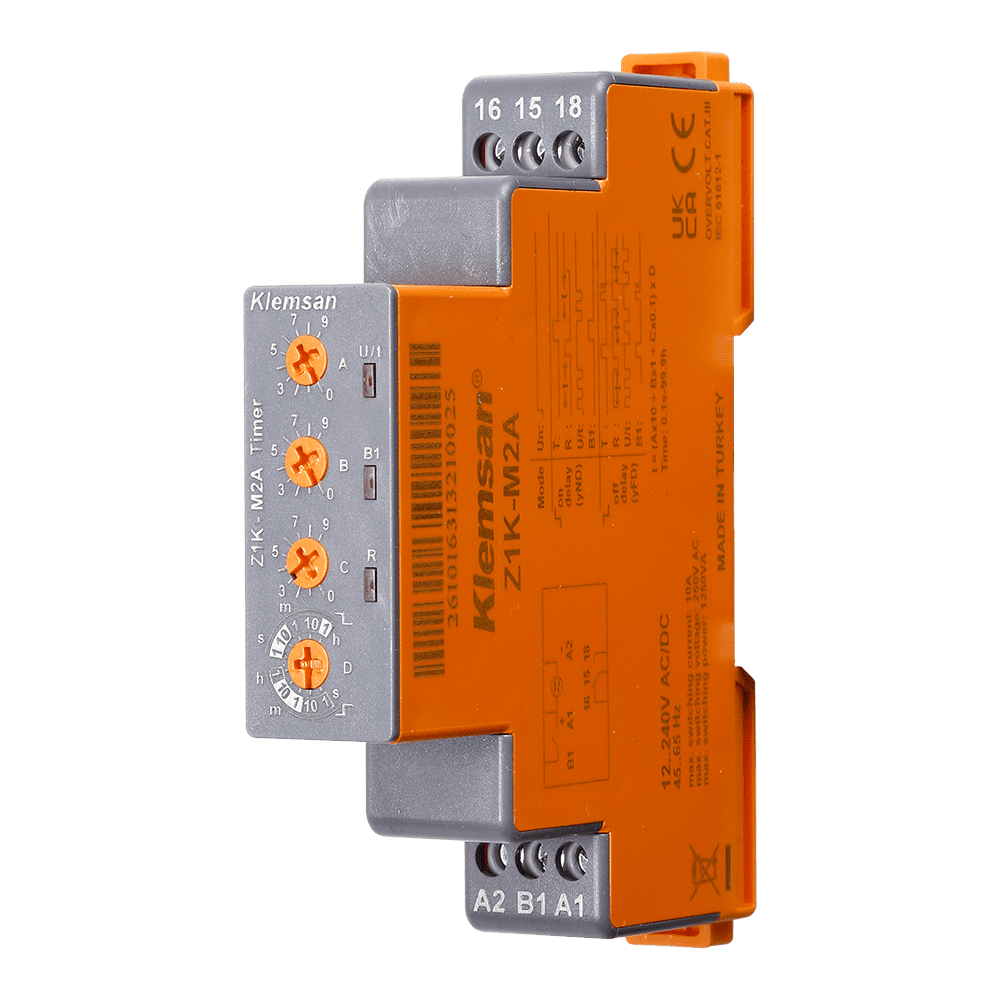

טיימר 2 פונק' Z1T-M2A

דגם: Z1T-M2A

מק"ט: 2.61016 קטגוריות: ציוד ללוחות, ציוד מיתוג ללוח, קוצבי זמן (טיימרים), תזמון ובקרה לפס דין/פנל

קוצב זמן (טיימר) דו תכליתי, רב תחומי ורב מתחי, מתאים לאופי השימוש הנרחב ביותר – השהייה בהפעלה / והשהייה בניתוק (ממתן הזנה ו/או בשימוש מתח פיקוד). רמת דיוק ואמינות גבוהה ביותר.

יישומים

להתקנה על פס דין
לשליטה ותזמון מערכות חשמליות

הוסף לסל

מפרט טכני

כללי

מספר פונקציות	2
טווח זמן 1 לכיול	0.1ש'-99.9שעות
ברגים	M3 שטוח
מתח הזנה	10%± 12-240VAC/DC
ממסר	250VAC /10A/ 1250VA
מיתוג מקסימלי	10A
זרם ממסר AC (עבור מגע פתוח)	10A/1250VA
זרם ממסר DC (עבור מגע פתוח)	5A/150W
צריכה עצמית AC	<5VA
צריכה עצמית DC	<1.5W
זמן אתחול פעולה	100MS מקסימום
תדר	45-65Hz
חיזוק ברגים (Nm)	0.5Nm
כניסות מוליכי הזנה (ממ"ר)	2.5mm²
חתך חישוף הזנה (מ"מ)	8mm-9mm
דרגת אטימות	IP20
לחות סביבתית	95%
טמפרטורה עבודה (ºC)	20+60Cº –
אורך חיים מכאני (מחזורים)	≥ 10⁷
כמות במארז	1 יח'

פונקציות

yND	השהייה בהפעלה עם/ללא פולס
yFD	השהייה בניתוק על/ללא פולס

מידות (מ"מ)

משקל

80גר'

תקנים
