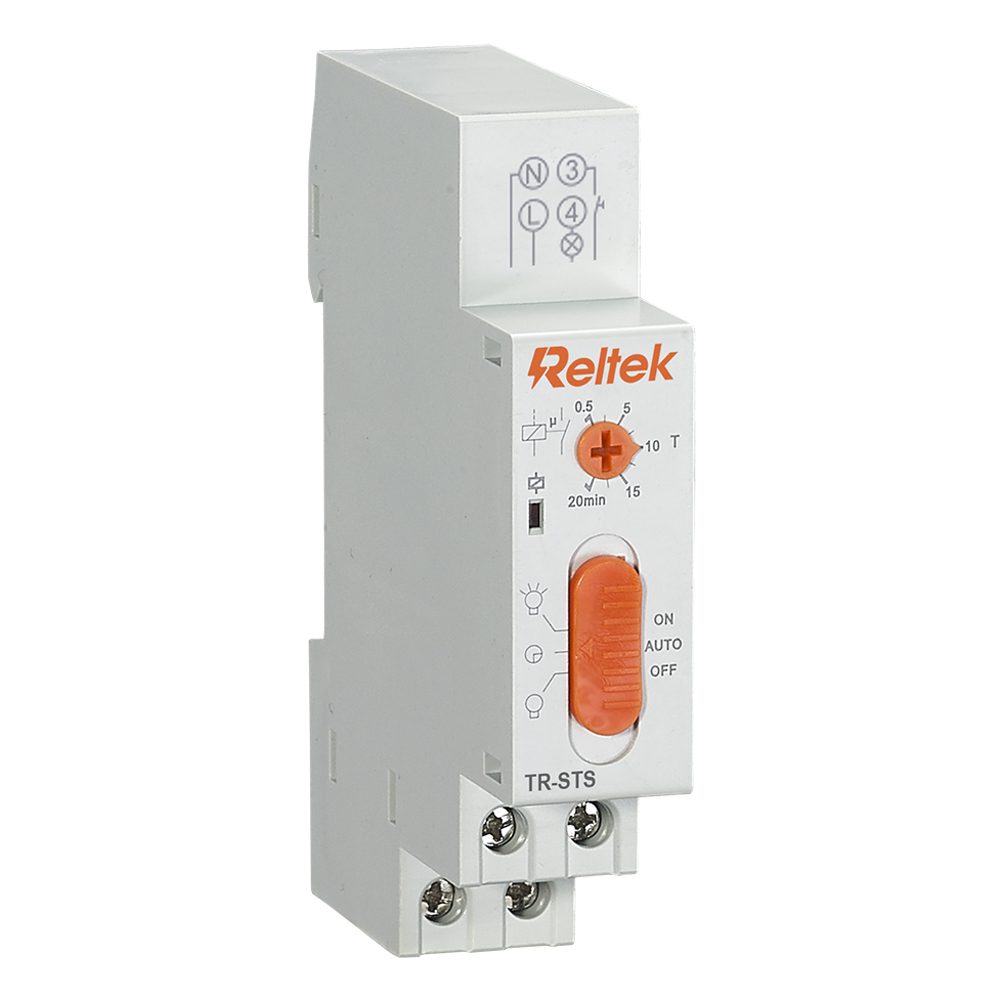

אוטומט מדרגות תקן TR-STS

דגם: TR-STS

מק"ט: 101300 קטגוריות: אוטומט חדר מדרגות, חדש במלאי, ציוד ללוחות, ציוד מיתוג ללוח, תזמון ובקרה לפס דין/פנל

חיבור 3 או 4 חוטים, בעל מפסק עוקף מובנה ותחום זמן רחב ומדוייק, כולל חיבור לחצנים מוארים. נבדק בעצימות גבוהה ביותר ומתאים לדרישות השוק הישראלי. (מאושר ברשימת תמח"ש)

יישומים

להתקנה על פס דין
לשליטה ותזמון מערכות תאורה בחדר מדרגות

הוסף לסל

מפרט טכני

כללי

מתח הזנה	220-240VAC/DC
סוג מגע	1NO
תדר	50/60Hz
זרם תרמי lth	16A
ליבון והלוגן	2000W
פלורסנט, PL ,EL	1000W
תאורת LED	690VA
לחצנים מוארים	100mA
נחשול מתח Uimp	4kV
טווח זמן השהייה	30 שנ' – 20 דק'
דרגת אטימות	IP20
טמפרטורת עבודה	25ºC – 50ºC-
טמפרטורת אחסנה	25ºC – 75ºC-

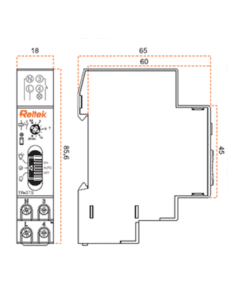

מידות (מ"מ):

משקל

54גר'

תקנים
